Docker Engine & Container Monitoring

We can monitor the docker engine and docker containers in prometheus.

I am using EC2 instance (my ubuntu server) where docker engine is running and another EC2 instance where prometheus server is running that will scrape docker engine and containers metrics from my ubuntu server.

Docker Engine Monitoring

Step 1 - Update docker daemon configuration

Create/update the docker daemon file located at /etc/docker/daemon.json

{
  "metrics-addr": "0.0.0.0:9323",
  "experimental": true
}

Step 2 - Restart docker engine

Run the following command to restart the docker

systemctl restart docker

Step 3 - Check locally if the docker metrics are visible

Run the following command to see if the docker metrics are visible

curl http://localhost:9323/metrics

Step 4 - Configure prometheus to scrape the docker machine

Update the prometheus configuration file located at /opt/prometheus/prometheus.yml

Step 5 - Restart prometheus

Run the following command to restart the prometheus server

systemctl restart prometheus

Step 6 - Check the target status in prometheus UI

Docker Containers Monitoring

To monitor docker containers, we need cAdvisor to run on the machine.

cAdvisor (Container Advisor) is an open-source tool by Google that provides container users with an understanding of the resource usage and performance characteristics of their running containers, offering detailed real-time metrics about CPU, memory, file and network usage.

I am using EC2 instance (my ubuntu server) where cAdvisor is running and another EC2 instance where prometheus server is running that will scrape docker containers metrics from my ubuntu server.

Step 1 - Run cAdvisor in ubuntu server

Create the docker compose file (anywhere in the machine) and run it.

version: '3.4'
services:
  cadvisor:
    image: gcr.io/cadvisor/cadvisor
    container_name: cadvisor
    privileged: true
    devices:
      - "/dev/kmsg:/dev/kmsg"
    volumes:
      - /:/rootfs:ro
      - /var/run:/var/run:ro
      - /sys:/sys:ro
      - /var/lib/docker/:/var/lib/docker:ro
      - /dev/disk/:/dev/disk:ro
    ports:
      - 8070:8080

To run the docker compose file, go to the file location and run the below command

docker compose up -d

Step 2 - Check docker container metrics scrape or not in ubuntu server

Run the command

curl localhost:8070/metrics

As per the snapshot, container metrics are scraped locally in the ubuntu server machine.

Step 3 - Integrate cAdvisor with Prometheus

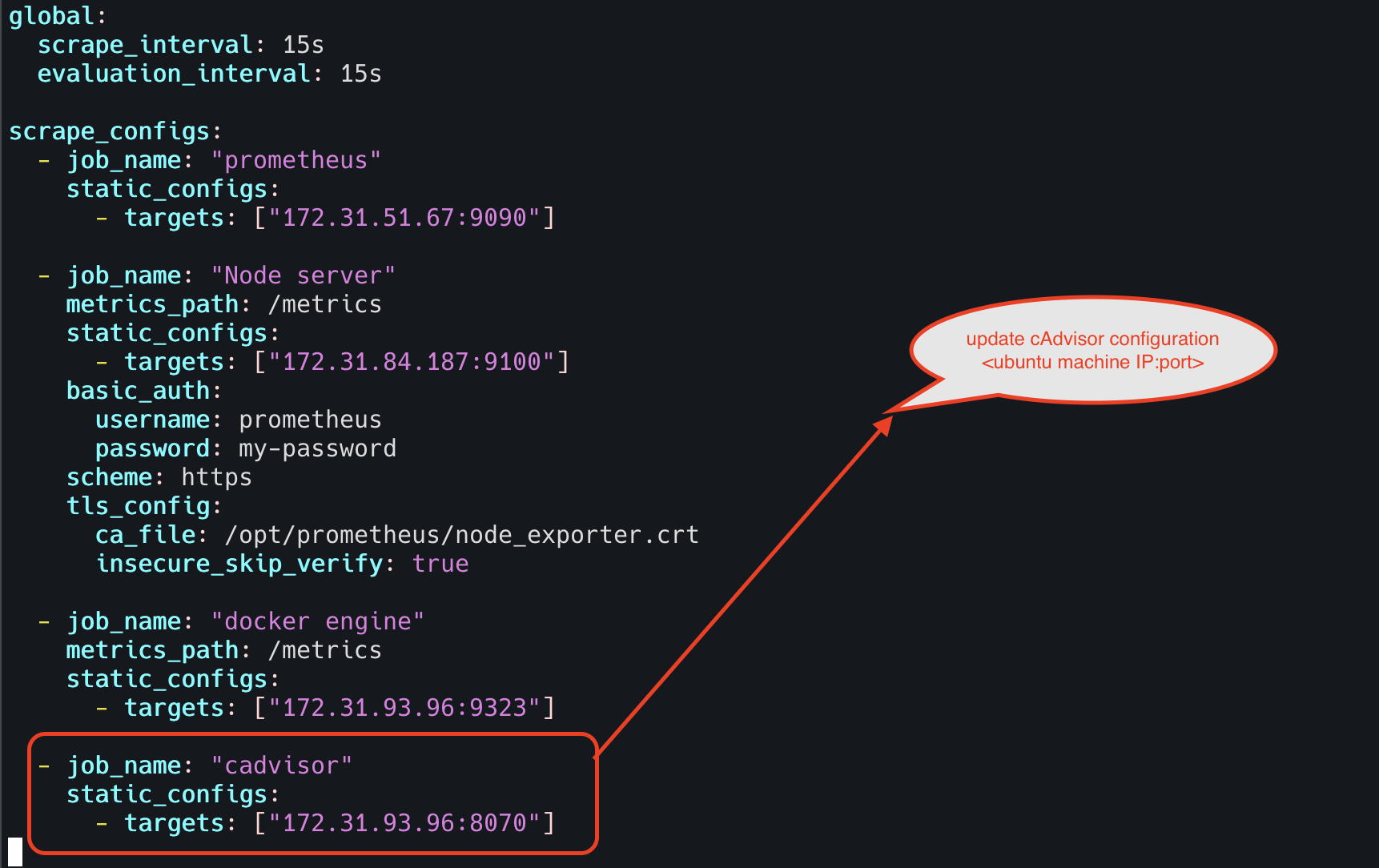

Update the prometheus configuration file located at /opt/prometheus/prometheus.yml

  - job_name: 'cadvisor'
    scrape_interval: 5s
    static_configs:
      - targets: ['<ubuntu server ip>:8070']

Step 4 - Restart Prometheus

Run the following command to restart the prometheus server

systemctl restart prometheus

Step 5 - Check the target status in prometheus UI
