Authentication & Encryption

I am running three different EC2 instances in my AWS account. Out of these three machines, two machines are having prometheus (one is an actual prometheus server and another one is normal ubuntu) and one machine has a node exporter. The goal is prometheus server should scrape the node server metrics, and ubuntu server should not scrape the node server metrics.

As of now, both ubuntu server and prometheus server are scraping the metrics.

This goal can be achieved using authentication and encryption.

Authentication

Step 1 - Create directories and assign permissions in the node server

sudo mkdir /etc/node_exporter
sudo touch /etc/node_exporter/config.yml
sudo chmod 700 /etc/node_exporter
sudo chmod 700 /etc/node_exporter/config.yml
sudo chown -R node_exporter:node_exporter /etc/node_exporter
sudo systemctl daemon-reload
sudo systemctl restart node_exporter.service

Step 2 - Create password for node server for authentication

sudo apt update
sudo apt install apache2-utils -y
htpasswd -nBC 10 "" | tr -d ':\n'; echo

Step 3 - Update password in the node server configuration

Update the node server configuration file located at /etc/node_exporter/config.yml

vi /etc/node_exporter/config.yml

basic_auth_users:
  <username>: <password in hash format>

Step 4 - Update the node service and restart the node server

[Service]
User=node_exporter
Group=node_exporter
Type=simple
ExecStart=/usr/local/bin/node_exporter --web.config=/etc/node_exporter/config.yml

[Install]
WantedBy=multi-user.target

Restart the node server

sudo systemctl restart node_exporter.service
curl -u <username>:<password> http://<hostname>:<port>/metrics

Step 5 - Update the authentication in prometheus server

Update the authentication in prometheus configuration located at /etc/prometheus/prometheus.yml

basic_auth:
  username: <username>
  password: <password in plain text>

Step 5 - Restart prometheus server

sudo systemctl restart prometheus

Encryption

Step 1 - Create certificates for node server

openssl req -new -newkey rsa:2048 -days 365 -nodes -x509 -keyout node_exporter.key -out node_exporter.crt -subj
"/C=US/ST=California/L=Oakland/O=MyOrg/CN=localhost" -addext "subjectAltName = DNS:localhost"

Step 2 - Copy certificates to node server location

sudo cp node_exporter.* /etc/node_exporter/
sudo chown -R node_exporter:node_exporter /etc/node_exporter

update the node server configuration file

tls_server_config:
  cert_file: <path of crt file>
  key_file: <path of key file>

Restart node server

sudo systemctl daemon-reload
sudo systemctl restart node_exporter.service

Step 3 - Copy node server certificates to prometheus server

scp <username>@<node server hostname>:/etc/node_exporter/node_exporter.crt /opt/prometheus/node_exporter.crt

Step 4 - Update prometheus configuration

Update the prometheus configuration located at /opt/prometheus/prometheus.yml for a node job

scheme: https
tls_config:
  ca_file: /etc/prometheus/node_exporter.crt
  insecure_skip_verify: true

Step 5 - Restart the prometheus server

Restart the prometheus server

sudo systemctl restart prometheus

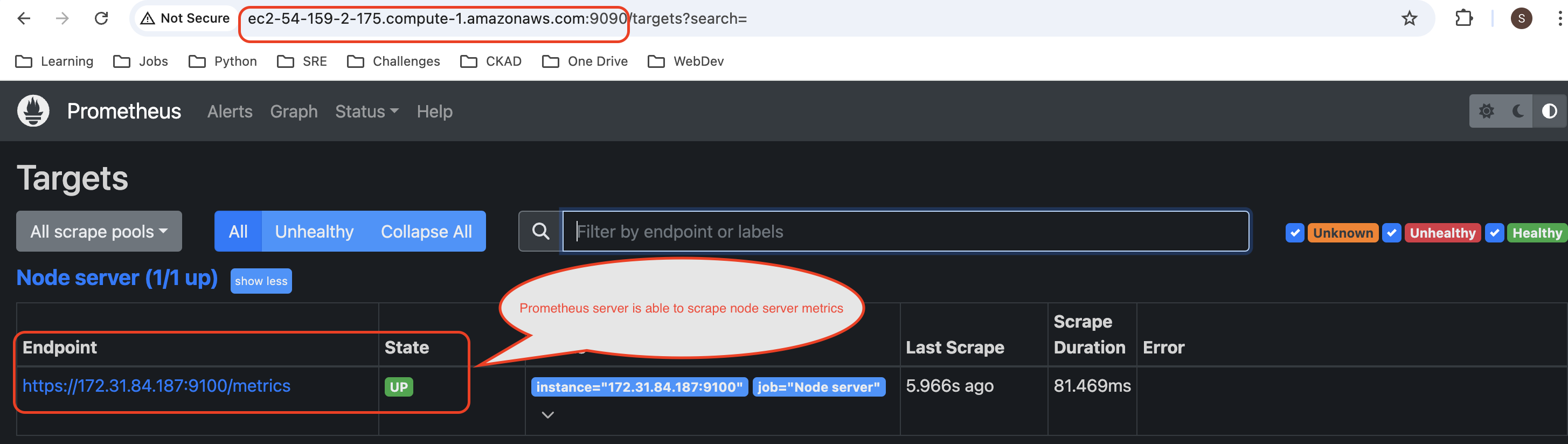

Now prometheus server is able to connect and scrape the metrics for node server.

However, ubuntu server is unable to connect the node server because it does not be authorized to connect the node server.
