Introduction to Helm

Let us assume that you have an application hosted in kubernetes. This application is required to run the database, firewall rules, load balancer, and services to expose the outside world, etc., As it needs a database, it requires persistent volume, persistent volume claim and storage class. Basically this application is a collection of objects that need to interconnect to make everything work as expected.

All these are created using YAML file in kubernetes cluster. However, kubernetes doesn't know our application as a whole. Instead, it understands that we created various objects and kubernetes make sure it exists in the cluster. This makes it a little difficult to maintain when it comes to a big application which has multiple YAML files.

Helm will solve this problem. It is a package manager for kubernetes. Helm looks all the objects as a group in a package. So, you need to tell Helm that what package it should modify. Helm will automatically take care of the objects it needs to modify based on the package name. We DO NOT instruct that to helm.

For example, a car has multiple components inside, and we don't need to know each component to drive the vehicle. We just press the accelerator and hold the steering wheel. The Rest will be taken care automatically. Similarly, we just need to instruct package name to Helm and Helm will do the magic automatically in kubernetes cluster.

If we want to customize the object, we DO NOT need to go to YAML file of the specific object. Instead, we just need to update the details in values.yaml file (Just one place). It is easy to upgrade the application with one single command. Helm always tracks the files which changed for each time. Hence, rolling back is again easy with one single command. Even, we can uninstall the application with simple command.

Prerequisites

1. Kubernetes cluster
2. kubectl should be configured

If the above two conditions are mandatory to install Helm.

You can verify helm installation using

helm version

You can use help command for addition command details.

Difference Between Helm2 and Helm3

High level

In general, when you install helm in the machine, helm cli is automatically installed. helm cli client helps to perform the action in kubernetes cluster. It reads the command from the user and takes the action in kubernetes cluster.

In Helm2, RBAC and CRD are not available. Hence, an extra component is installed in the kubernetes cluster and the component is called tiller. Whenever we run the command in helm cli, it is talking to tiller and tiller communicates with kubernetes cluster to perform the action whatever requested. By default, tiller has full privileges in k8s cluster. Any user who have access to tiller can do anything in k8s cluster, which is really a security concern.

In Helm3, Tiller was removed. Helm cli directly communicates with kubernetes cluster and RBAC will take care of the security.

In Helm2, it tracks all the changes as a snapshot. Whenever we issue the command, it checks the current chart and finds the differences with the previous version and apply the changes.

Let us assume it, we installed an initial version of a chart using Helm. Then, we are upgrading it using kubectl command manually. After that if we issue helm rollback command, helm will NOT find any differences with previous version of chart as the current k8s objects are upgraded manually and NOT via helm.

In Helm3, whenever we issue helm rollback command, helm will try to check the live objects in k8s cluster and compare it with the previous version of chart and if it finds any differences, then the changes will be deployed. Even though, upgrades are done manually and helm is not tracking the changes, it is intelligent enough to check live objects and previous chart and take the decision accordingly. This is called 3 way stratefic merge patch.

Helm Components

helm cli used to interact with k8s cluster. This is where you execute all the commands to perform actions in k8s cluster.

charts is nothing but a collection of files, and it contains all the instructions that helm needs to be performed (Create/ upgrade/uninstall all the objects in k8s cluster). It contains all the resource definitions necessary to run the application inside k8s cluster.

release - When the chart is applied in your cluster, release is created. It is nothing but a single instance of your application. Once chart can be installed multiple times in the same k8s cluster. Each time it is installed, a new release will be created.

For example, httpd server chart. If you want two httpd servers run in your k8s cluster, you can install this chart twice. Each one will have its own release and in turn own release name.

Remember each release has multiple revisions. revision is nothing but the snapshot of the current state of the k8s cluster.

repository is a place where all the charts can be collected and shared with public (only for k8s packages). This is similar to docker hub. artifacthub.io is the place where almost all the charts are stored.

metadata - Helm needs to track all the chart that is installed, all the releases names and their revision state. All these data is saved in the k8s cluster itself. This data is called metadata (data about data). So it can be shared among the team members as long as k8s cluster is available.

values.yaml - This is the place where all the customized properties updated. Based on this file, helm will create the objects in the k8s cluster. The actual value will be taken from this file and replace it in the template specified in the configuration (YAML files).

Why do we need release?

When you install helm chart, you should provide the release name. The reason for this, each release considers as a separate entity. Each release has its own revisions. To understand better, there are two releases created for your application in the k8s cluster. One for the customer and one for the developer. So, a developer can deploy the new features and do the testing without touching customer release, and this will not impact any customer experience.

Helm Charts

In any helm chart directory, two files are mandatory. 1. value.yaml - This is the place where we define the configuration of our k8s objects 2. chart.yaml - This is the place where we provide all the information about the charts.

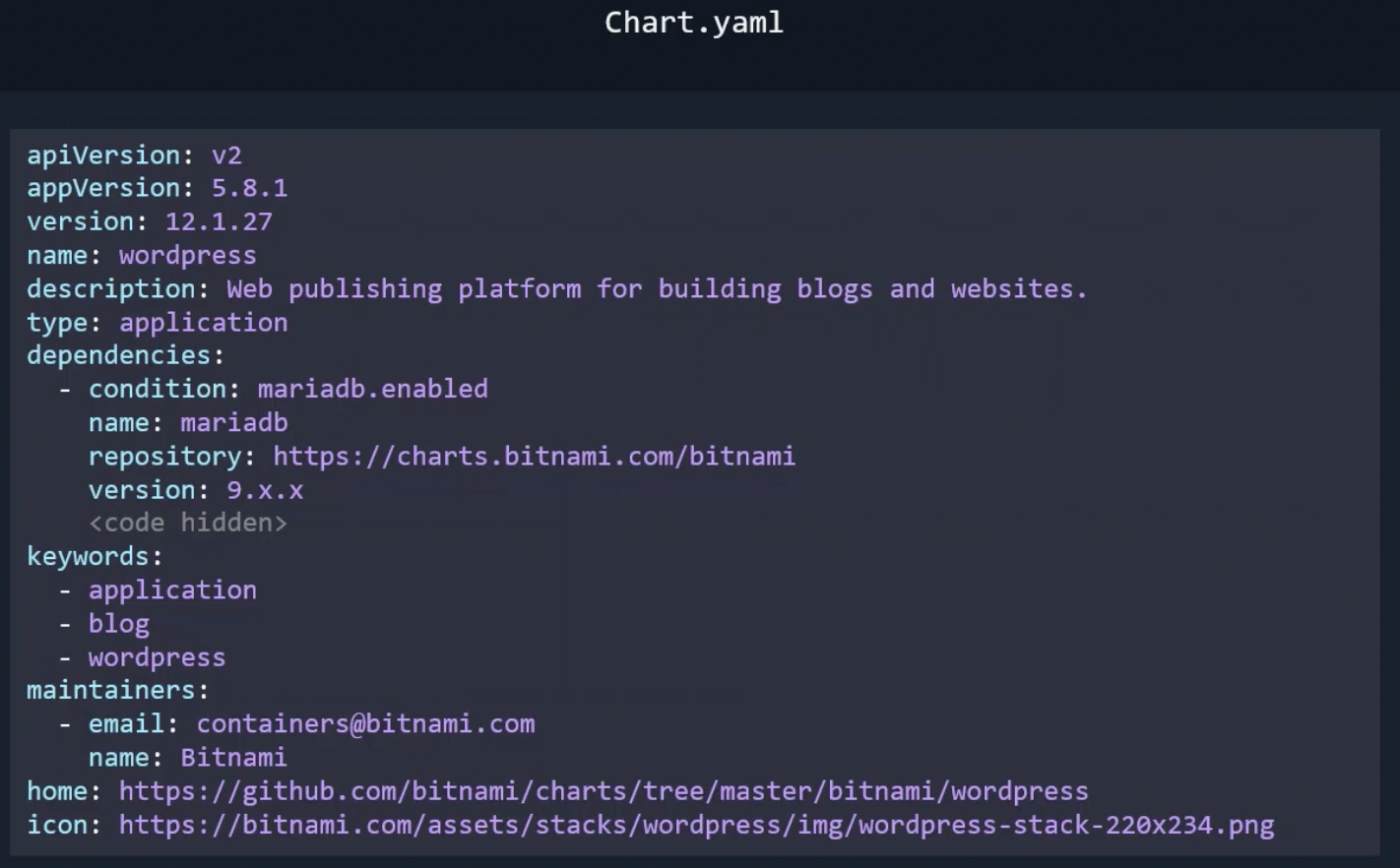

chart.yaml

In the above snapshot, apiVersion -> Either v1 or v2. V1 is for Helm2 and v2 for Helm3. Remember that this field may NOT be available in Helm2 charts. Those charts were created long back. Now if you want to create a chart for Helm2, then this field should be v1. Let's say you are creating a chart for Helm3 and you update apiVersion as v1. Then, some fields described in the chart.yaml file may not be available because the v1 version belongs to Helm2 and Helm2 don't have those fields (Example: type, dependencies).

appVersion -> This is an application version, and it can be anything but your input. This is for information purpose.

Version -> This is a chart version. This helps to track the changes in the chart itself.

type -> Either application or library. application -> for any application. library -> For utilities to build chart.

dependencies -> Your chart depends on another chart. However, you don't need to maintain the dependency chart. Instead, you are instructing helm to maintain dependency chart manifest files. These charts are placed under charts directory.

keywords -> Helps when searching the chart in the public repository.
