Access Control List (ACL)
Let us assume that we are traveling on national highway, and sometimes we see the sign board saying that heavy vehicle lane. It means that heavy vehicles go in that lane and other vehicles are not allowed to go in that lane. Similarly, we can route our incoming traffic to specific server based on conditions. This is called access control list.
ACL in HA Proxy are rules or conditions that allow you to define patterns to match incoming requests. These rules help you make decisions about how to route or manage traffic within your infrastructure. It will read all the http request information and take a decision based on that information. Here decision is nothing but to divert the request to different servers.
Use of ACL
1. Security : Using ACL, we can allow or deny the request. This helps to avoid DDos attack.
2. Control over traffic : Using ACL, we can filter and route the traffic based on specific criteria. This will help to avoid an unnecessary load on a specific server. Also, this will help to improve performance of the system as we segregate static data in one server and dynamic data in different server.
Syntax
Routing Traffic Based on URL Path
I am running HA proxy in EC2 ubuntu machine. I am also creating three APIs running on different ports using Flask application. I created docker images for these three APIs and created docker image for HA proxy configuration as well. I am running everything in docker compose file.
HAproxy.cfg
global
log stdout format raw local0
daemon
defaults
log global
mode http
option httplog
option dontlognull
timeout connect 5000ms
timeout client 50000ms
timeout server 50000ms
frontend http_front
bind *:8888
acl is_static path_beg /static
use_backend static_backend if is_static
default_backend servers
backend static_backend
server server2 app2:5002 check
backend servers
balance roundrobin
server server1 app1:5001 check
server server3 app3:5003 check
app1.py
from flask import Flask, request
app = Flask(__name__)
@app.route('/', methods=['GET'])
def home():
return "Hello from Flask from app 1!"
@app.route("/static")
def data():
return "Static Data from Flask App 1!"
if __name__ == "__main__":
app.run(host='0.0.0.0', port=5001) # Run the app on port 5001
from flask import Flask, request
app = Flask(__name__)
@app.route('/', methods=['GET'])
def home():
return "Hello from Flask from app 2!"
@app.route("/static")
def data():
return "Static Data from Flask App 2!"
if __name__ == "__main__":
app.run(host='0.0.0.0', port=5002) # Run the app on port 5002
app3.py
from flask import Flask, request
app = Flask(__name__)
@app.route('/', methods=['GET'])
def home():
return "Hello from Flask from app 3!"
@app.route("/static")
def data():
return "Static Data from Flask App 3!"
if __name__ == "__main__":
app.run(host='0.0.0.0', port=5003) # Run the app on port 5003
docker-compose.yaml
version: '3'
services:
app1:
build:
context: .
dockerfile: Dockerfile.app1
container_name: flask_app1
ports:
- "5001:5001"
app2:
build:
context: .
dockerfile: Dockerfile.app2
container_name: flask_app2
ports:
- "5002:5002"
app3:
build:
context: .
dockerfile: Dockerfile.app3
container_name: flask_app3
ports:
- "5003:5003"
haproxy:
build:
context: .
dockerfile: Dockerfile.haproxy
container_name: haproxy
ports:
- "8888:8888"
depends_on:
- app1
- app2
- app3

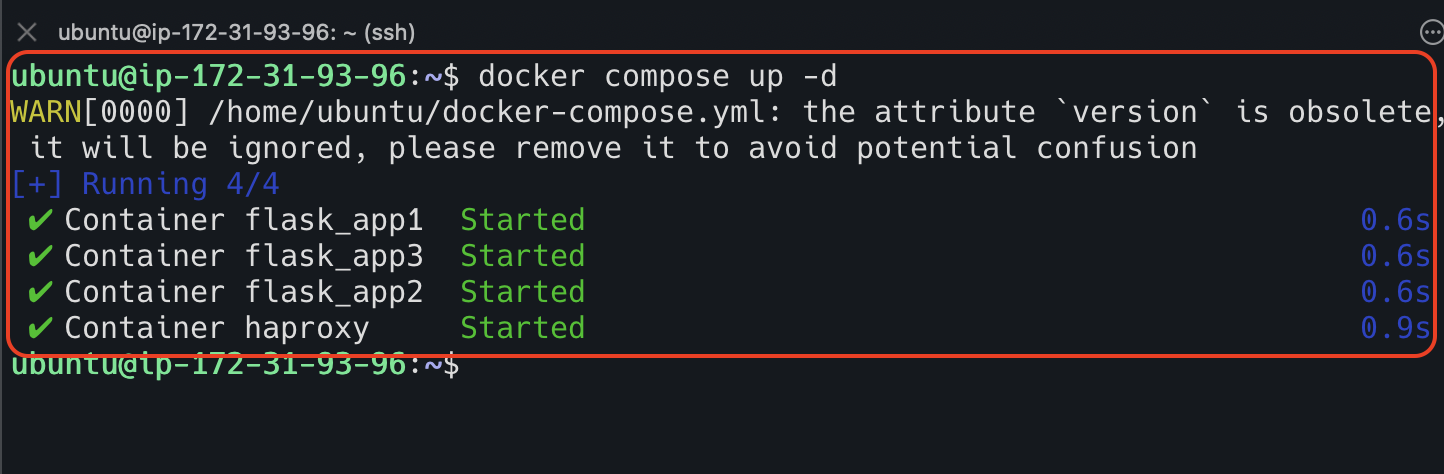

Let us create the containers using docker compose up -d command
Hit the URL in the browser with just "/" and after that hit the url with "/static"
Check the logs
Block the traffic from specific IP
I am running HA proxy in EC2 ubuntu machine. I am also creating three APIs running on different ports using Flask application. I created docker images for these three APIs and created docker image for HA proxy configuration as well. I am running everything in docker compose file.
HAproxy.cfg
global
log stdout format raw local0
daemon
defaults
log global
mode http
option httplog
option dontlognull
timeout connect 5000ms
timeout client 50000ms
timeout server 50000ms
frontend http_front
bind *:8888
acl block_ip src 172.31.28.60/24
http-request deny if block_ip
default_backend servers
backend servers
balance roundrobin
server server1 app1:5001 check
server server3 app3:5003 check
app1.py
from flask import Flask, request
app = Flask(__name__)
@app.route('/', methods=['GET'])
def home():
return "Hello from Flask from app 1!"
@app.route("/static")
def data():
return "Static Data from Flask App 1!"
if __name__ == "__main__":
app.run(host='0.0.0.0', port=5001) # Run the app on port 5001
from flask import Flask, request
app = Flask(__name__)
@app.route('/', methods=['GET'])
def home():
return "Hello from Flask from app 2!"
@app.route("/static")
def data():
return "Static Data from Flask App 2!"
if __name__ == "__main__":
app.run(host='0.0.0.0', port=5002) # Run the app on port 5002
app3.py
from flask import Flask, request
app = Flask(__name__)
@app.route('/', methods=['GET'])
def home():
return "Hello from Flask from app 3!"
@app.route("/static")
def data():
return "Static Data from Flask App 3!"
if __name__ == "__main__":
app.run(host='0.0.0.0', port=5003) # Run the app on port 5003
docker-compose.yaml
version: '3'
services:
app1:
build:
context: .
dockerfile: Dockerfile.app1
container_name: flask_app1
ports:
- "5001:5001"
app2:
build:
context: .
dockerfile: Dockerfile.app2
container_name: flask_app2
ports:
- "5002:5002"
app3:
build:
context: .
dockerfile: Dockerfile.app3
container_name: flask_app3
ports:
- "5003:5003"
haproxy:
build:
context: .
dockerfile: Dockerfile.haproxy
container_name: haproxy
ports:
- "8888:8888"
depends_on:
- app1
- app2
- app3
Let us create the containers using docker compose up -d command
Hit url from another machine whose IP address is 172.31.28.60
Route Traffic Based on HTTP method
I am running HA proxy in EC2 ubuntu machine. I am also creating three APIs running on different ports using Flask application. I created docker images for these three APIs and created docker image for HA proxy configuration as well. I am running everything in docker compose file.
HAproxy.cfg
global
log stdout format raw local0
daemon
defaults
log global
mode http
option httplog
option dontlognull
timeout connect 5000ms
timeout client 50000ms
timeout server 50000ms
frontend http_front
bind *:8888
acl is_post_method method POST
use_backend static_backend if is_post_method
default_backend servers
backend static_backend
server server2 app2:5002 check
backend servers
balance roundrobin
server server1 app1:5001 check
server server3 app3:5003 check
app1.py
from flask import Flask, request
app = Flask(__name__)
@app.route('/', methods=['GET'])
def home():
return "Hello from Flask from app 1!"
@app.route("/static", methods=['POST'])
def data():
return "Static Data from Flask App 1!"
if __name__ == "__main__":
app.run(host='0.0.0.0', port=5001) # Run the app on port 5001
from flask import Flask, request
app = Flask(__name__)
@app.route('/', methods=['GET'])
def home():
return "Hello from Flask from app 2!"
@app.route("/static", methods=['POST'])
def data():
return "Static Data from Flask App 2!"
if __name__ == "__main__":
app.run(host='0.0.0.0', port=5002) # Run the app on port 5002
app3.py
from flask import Flask, request
app = Flask(__name__)
@app.route('/', methods=['GET'])
def home():
return "Hello from Flask from app 3!"
@app.route("/static", methods=['POST'])
def data():
return "Static Data from Flask App 3!"
if __name__ == "__main__":
app.run(host='0.0.0.0', port=5003) # Run the app on port 5003
docker-compose.yaml
version: '3'
services:
app1:
build:
context: .
dockerfile: Dockerfile.app1
container_name: flask_app1
ports:
- "5001:5001"
app2:
build:
context: .
dockerfile: Dockerfile.app2
container_name: flask_app2
ports:
- "5002:5002"
app3:
build:
context: .
dockerfile: Dockerfile.app3
container_name: flask_app3
ports:
- "5003:5003"
haproxy:
build:
context: .
dockerfile: Dockerfile.haproxy
container_name: haproxy
ports:
- "8888:8888"
depends_on:
- app1
- app2
- app3
Let us create the containers using docker compose up -d command
Hit url using postman for GET method call
Hit url using postman for POST method call
